TYPE 27 General Purpose Saw Blades for Portable Machines

TYPE 27 General Purpose Saw Blades for Portable Machines

$0.00

Manufactured to work in portable machines with all the technical features of “high industrial quality” saw blades.

Add to Wishlist
Category:

Description

Manufactured to work in portable machines with all the technical features of “high industrial quality” saw blades.

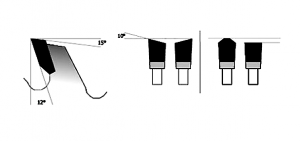

Grind ATB & TC

Ref. No D(Dia) B(Kerf) b(Plate) d(Borde) Z(Teeth) B(Hook) RRP($)
27-00702401 7-1/4″ .102″ .072″ 5/8″ 24 ATB 12° 34.93
27-00704001 7-1/4″ .102″ .072″ 5/8″ 40 ATB 12° 49.50
27-00706001 7-1/4″ .102″ .072″ 5/8″ 60 ATB 12° 62.16
27-00704013 7-1/4″ .102″ .072″ 5/8″ 40 TC 12° 54.43
27-16004820 160mm 2.2mm 1.6mm 20mm 48 ATB 8° 63.73 (=)

(=) 2 pin holes 2/6/32.5mm

Additional information

Ref. # Type 27

27-00702401, 27-00704001, 27-00704013, 27-00706001, 27-16004820

  • All the Saw Blades are 100% guaranteed against material or manufacturing defects. We will only replace tools which prove defective upon our examination. The Blades have to be used properly in handing and application, and have to be sharpened with correct technical specifications.

  • All the Saw Blades offered in this catalog are subject to availability.

  • The specifications in this catalog are subject to technical alterations due to our continuous improvement.

  • Prices are subject to change without notice. Orders are accepted on the basis of prices in effect on the date of order.
